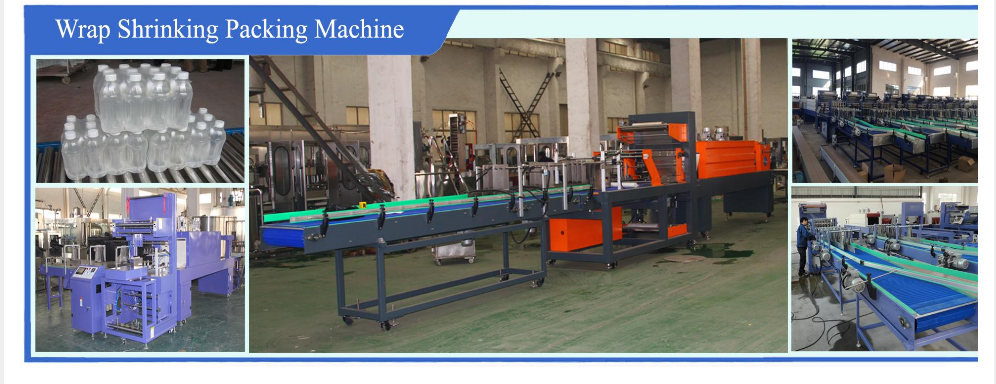

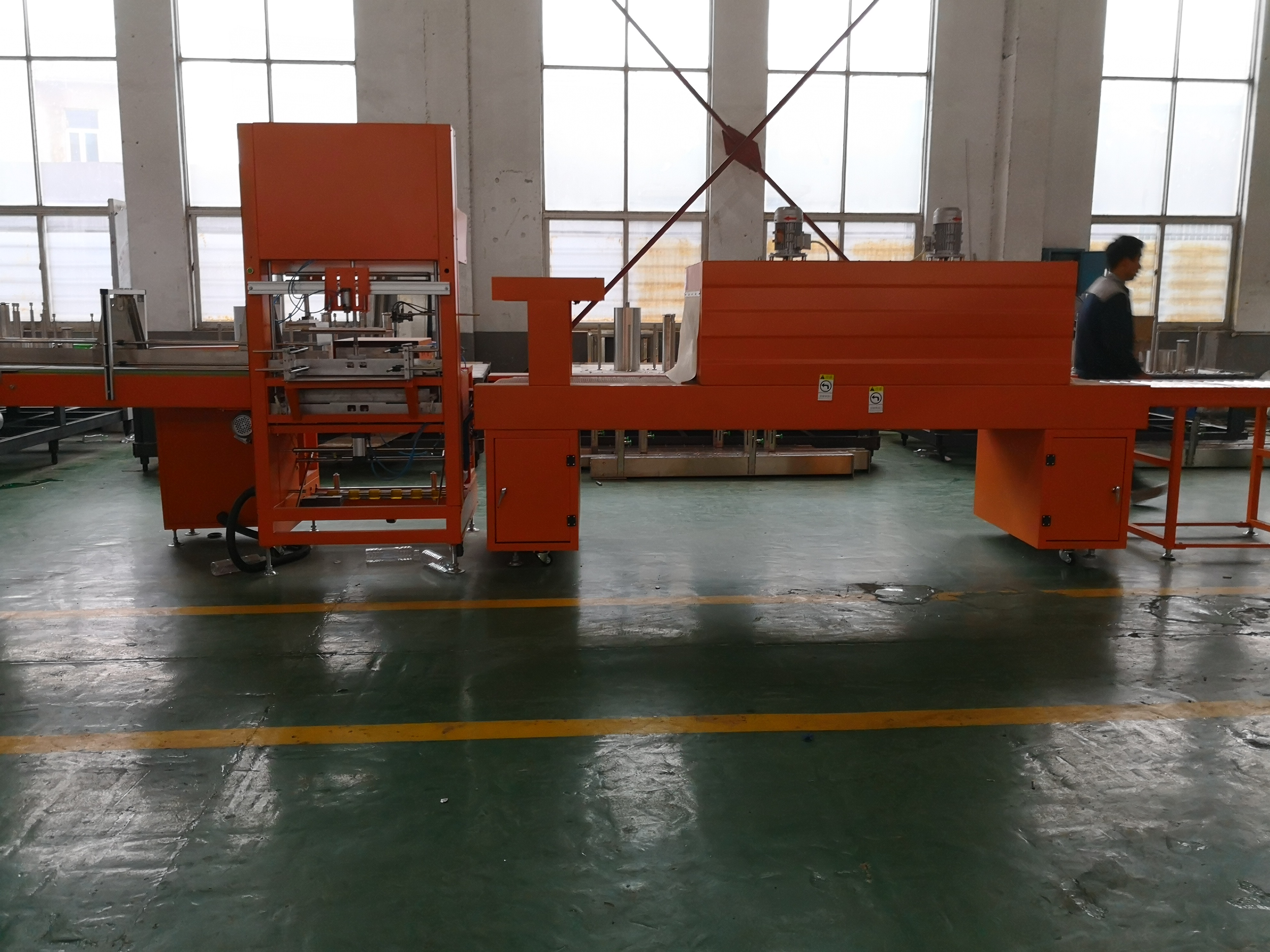

Automatic PE Film Heat Shrink Wrapping Machine Bottled Water
Wrapping Shrink Sleeve Cutting Packaging Machines
Product Description

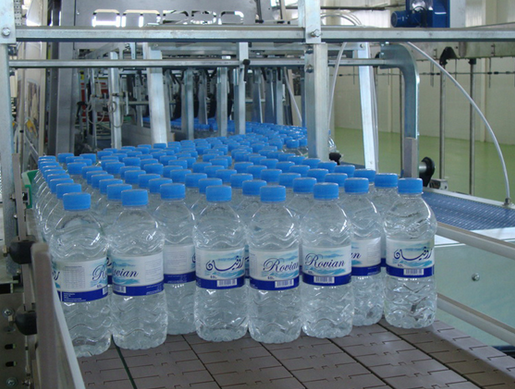

Automatic bottle shrink wrapping machine is suitable for wrapping
of such products as pop-top,mineral water,bottles beer, drinks etc
without bottom tray ,working with PE film shrink tunnel to pack the
goods perfectly ,the whole production process adopts the germany
advanced technics ,and the main parts are imported from
international famous companies, Capacity stable and using long-time
,it consists of seven actuating motor ,through cooperation with 7
actuating motor to form the product packed with plastic film and
several bottles as a group come out from the hot shrinking packing
machine.
Specification
Model | MBJ-150A |
Overall Dimension | L5050*W3300*H2100mm |
Machine Weight | 1200kg |
Heat Shrinkable Furnace Size | L3700*W920*H350mm |
Max Size of Products | L600*W400*H350mm |
Packing Speed | 8~10Bags/min |
Width of Conveyor Belt | 920mm (Adjustable) |
Working Power | 3Phases AC/ 380V /20KW |
Working Gas Pressure | 0.6~0.8Mpa |
Package type:
(1)350/500/550/600ML
big bag:4×6,4×5 ;
small bag,3×4,3×5 four type of package.
(2)1L/1.5L/2L/2.5L
big bag:3×3,3×4;
small bag,2×2,2×3 four type of package
2,Regarding can, we suggest adopt to package with tray, pack
steadily.
3,Package speed:6-10bag/min
4,Meet with pre-treatment filling speed of filling machine.
Package material:PE thermo shrinkage film width(200-600mm),thickness(0.08-0.12mm)
Model | WD-150A |
Overall Dimension | L5050*W3300*H2100mm |
Machine Weight | 1200kg |
Heat Shrinkable Furnace Size | L3700*W920*H350mm |
Max Size of Products | L600*W400*H350mm |
Packing Speed | 8~10Bags/min |
Width of Conveyor Belt | 920mm (Adjustable) |
Working Power | 3Phases AC/ 380V /20KW |
Working Gas Pressure | 0.6~0.8Mpa |
