600m2 200KVA Automatic Water Bottle Filling Machine Mineral ISO

Ask Lasest Price
Brand Name :	Aquatrin
Model Number :	CGF
Certification :	ISO CE
Price :	USD12000-50000 1Set
Payment Terms :	L/C, T/T
Supply Ability :	10units per month
Delivery Time :	45days

Add to Cart

Product Details
Company Profile

600m2 200KVA Automatic Water Bottle Filling Machine Mineral ISO

Product Description

The machine is used for producing drinking water in PET bottle, such as pure water, mineral water,natural water etc.Adopting hanging-neck technology,it can transfer the plastic bottle more stably and faster. One machine can finish washing bottle, filling and capping three processes, sanitary and high-efficiency,High-quality filling valve guarantee the filling level precision.

600m2 200KVA Automatic Water Bottle Filling Machine Mineral ISO

MACHINE SPECIFICATION

Model	CGF8-8-3	CGF14-12-5	CGF18-18-6	CGF24-24-8	CGF32-32-10	CGF40-40-12	CGF50-50-15
Capacity(B/h)	2000	5000	8000	12000	15000	18000	24000
Floor Area	300m2	400m2	600m2	1000m2	2000m2	2500m2	3500m2
Total Power	100KVA	100KVA	200KVA	300KVA	450KVA	500KVA	600KVA
Workers	8	8	6	6	6	6	6


WATERLINE FLOW CHART

Machines Details

To improve and ensure product quality as the goal,
to provide customers with perfect services and high-quality equipment,
We believe “all steps in production are quality control processes”.


Bottle Washing

● Into bottle way is air conveyor direct connection with bottle dial.● All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
● 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
● 304/316 stainless steel washing pump make the machine more durable.

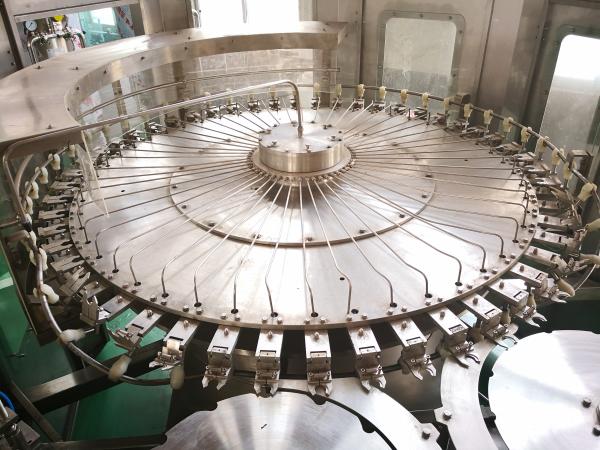

Bottle Filling

● 304/316 Stainless steel high precision filling nozzle● Filling volume adjustable in fine rank, same liquid level after filling
● All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
● 304/316 stainless steel filling pump
● Efficient spray nozzle rinse thoroughly and save water for flushing


Bottle Capping

● Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
● All 304/316 stainless steel construction
● No bottle no capping
● Automatic stop when lack of bottle
● Capping effect is stable and reliable, Defective rate ≤0.2%


Water treatment/purification system

● 1 Raw water tank + Raw water pump● Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
●  Reverse Osmosis (one level)
● UV sterilizer
● Finished water tank + Pure water pump
● Stainless steel high pressure film shell
● All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
● Online type pressure auto self-protection device
● Online type electricity indicator (with stable compensation)
● System safe protecting and alarm system
● System frame


Bottle Blow Molding Machine

● Production flexibility: Up to 200 different equipment size configurations from one platform● Top quality: Electrical stretching for bottle integrity, full material distribution control and performance
● Fast output: Boosted uptime and speed (up to 2,400 bottles/mould/hour)
● Efficient consumption: Up to 45 % less electricity and 35 % less compressed air


Automatic Shrink Wrapping Machine

● Pack consistency and quality● Gentle and precise infeed configuration
● Flexible handling of multiple SKUs
● Automatic pack and raw material changeovers
● Heat, glue, carton and film optimisation
● Whether you choose shrink-wrap film, nested packaging or packaging carton, we will gently feed the bottles to ensure durable and economical packaging.


Automatic Sleeve Labeling Machine

● Boasting four carousel sizes, up to three labelling stations and 24 configurations, can generate outputs of up to 72,000 containers per hour, when standalone, at an efficiency rate of 98%.● Greater performance and ergonomics
● Boasted production uptime
● Sustainable and quality production
