Full Automatic Barrel Production Line
The filling line special for 3-5 gallons barreled drinking
water,with type of
QGF-100,QGF-240,QGF-300,QGF-450,QGF-600,QGF-900,QGF-1200.It
integrates bottle washing,filling and capping into one unit.In
order to chineve the purpose of washing and sterilizing.The washing
machine uses multi-washing liquid spray.This thimerosal can be used
circularly.The capping machine can automatic.This line equips with
water spraying device in order to ensure those caps sterile and
clean.It also can automatic carry out
barrel.Washing,sterilizing,filling capping,counting and products
discharging.With complete fuction,modern design and high degree of
automation.It is new kind of barreled water auto-producing
line,which integrates mechanism,electricity and pneumatic
technologies together.
Product Description
Containers and Specifications |
Project Name:
Full Automatic Complete 60-1200BPH 3-5 Gallon Barrel Filling
Production Line | PH≥4.6
drinking water |
Material | Shape | Filling Volume | Filling Llevel(mm) | Cap Type |
PET / PC Bottle | Square or Round Bottle | 3 - 5 Gallon | Distance from bottle neck According request | Normal Cap |
Adjustable specifications of the bottle type | Size of Barrel : ф276×490mm |
Customers need to buy additional change-over parts for the
different bottles.
If using square bottles, then bottle separating system will be
added. |
Container Label | Sticker Label / Shrink Wrap Label / Prinetr Label |
User Ambient Conditions | Temperature: 10~40℃ Humidity: No dew |
User Electrical Supply Specification | Voltage: 380V±5% 3phase Frequency: 50HZ±1%/60HZ±1% |
Model: IBW-8/16
Function: wash & disinfect the internal 5 gallon bottle with hot
alkali water, detergent
water,cycle water, production water
Technical Parameter
- Washing capacity: 1200 bottles per hour
- Each washing stops washing time: 18 seconnds
- Washing tank: 4pcs ( hot hot alkali water tank, detergent water
tank, cycle water tank, production water tank)
- Washing pump 4pcs fixed with each water tank.
Water Filler
Model: RF-8E
Function: to fill the production water into empty bottle,Technical
Parameter:
- Filling Nozzle: 8pcs SUS304
- Filling Capacity: 1200 bottle per hour
- Suitable to bottle dimension: 3,5,6 gallon bottle
- Drive motor power 2.2kw 1pc
- Dimension: 1800×1200×2500mm
Caps Chain Plate Capper
capping the bottle by chain plate station
Techincal Parameter:
Capping capacity: 1200BPH
Feature:
Automatic caps arranging,caps washing and caps delivery.
Lack of caps automatic start, full of caps automatic start
Chain plate capping station, steadily & smoothly
SUS304 pipeline, valve and other liquid contacts parts
Caps Elevator
Model: CF-1
Function: to convey the caps to the Capper‘s caps container
full-automatically
304 stainless steel construction
Heavy duty convey motor 1pc

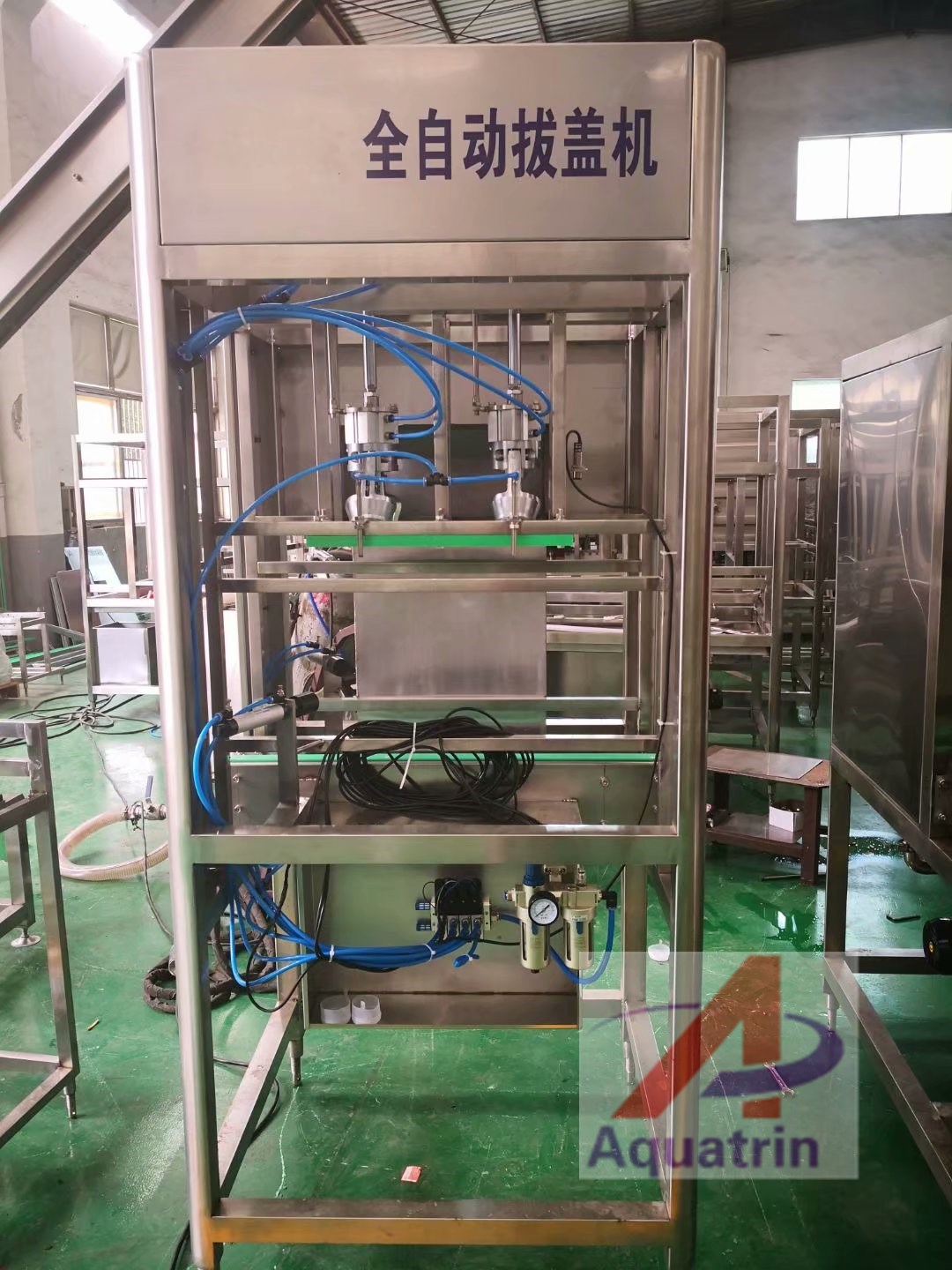

No 1. Cap Decapper
Model: DP-2
Function: to remove the caps that leave the 5gallon bottle that
after used Technical Parameter
- Decapping Capacity: max 1200 bottle per hour
- Machine size: 800×500×1750mm Machine
- Air required 0.4cbm/minite compressed @ pressure 0.6—0.8Mpa
Outside Brush machine
Automatic barrel outer brushing machine specially work with 5
Gallon barreled water producing line. It is used for reducing the
settling caused by the mineral water itself and some algae
substances in the process of mineral water producing. The machine
is made of excellent stainless steel with the advantage of
easily-rinsing and corruption-resistance.
Model: SL-30E 5 gallon labeling machine Automatic Sleeve Labeling Inserting Machine:
| Model | SL-30E |
| Labeling Speed ( capacity) | Max1,600 bottle per hour |
| Suitable to Bottle Diameter | 3,5,6gallon bottle |
| Suitable to Bottle Height (mm) | Max. 450 |
| Suitable to bottle diameter(mm) | Max.270 |
| Suitable to Label length(mm) | 35~100mm |
| Label thickness | 0.035~0.08mm |
| Paper pipe interior diameter | 3~10mm adjustable |
| Power | 2.2kw |
| Machine Dimension | 1500(L)* 950(W) * 2000(H) mm |
| Weight | 350kgs |
We provide Free bottle design
we provide free factory layout
Our customers
| | | | | | | |
Filling heads | | | | | | | |
Volume(Gallon) | | | | | | | |
Barrel size(mm) | | | | | | | |
Capacity(b/h) | | | | | | | |
Gas pressure(Mpa) | | | | | | | |
Gas consumption(m³/min) | | | | | | | |
Motor power(kw) | | | | | | | |
Weight(kg) | | | | | | | |
