5 Gallon Bottled Pure Mineral Water Filling Capping Bottling Machine Plant

Ask Lasest Price
Brand Name :	Aquatrin
Model Number :	QGF
Certification :	ISO CE
Price :	USD2000-60000 1Set
Payment Terms :	T/T
Supply Ability :	10units per month
Delivery Time :	45days

Add to Cart

Product Details
Company Profile

5 Gallon Bottled Pure Mineral Water Filling Capping Bottling Machine Plant

5 gallon bottled pure mineral water filling capping bottling
machine plant

Main Features:1. This filling line specially produces 3&5 gallons barreled
drinking pure water. 2. This series barreled filling production
line integrates bottle washer, filler and sealer into one unit. 3.
In order to achieve the purpose of washing and sterilizing, bottle
washer adopts multiple liquid injections washing and disinfectant
spray, and washing solution can be used circularly. The sealer can
seal bottle caps automatically. 4. This filling line equips with
water spraying device to sterilize caps of bottles in order to
ensure those caps are aseptic and healthy. 5. This line also can
automatically carry out bottle washing, sterilizing, filling,
capping, counting and products discharging. 6. It has features of
complete functional, novel design, and high degree of automation.
It is a new kind of barreled water auto-producing line, which
integrates mechanism, electricity and pneumatics technologies
together.
Details Images
Water treatment system
Processing included: quartz sand filter, active carbon filter,
sodium ion exchanger, precision filter, RO (Reverse Osmosis), ozone
generator, finished water tank
Barrel outside washing machine
Automatic barrel loading machine

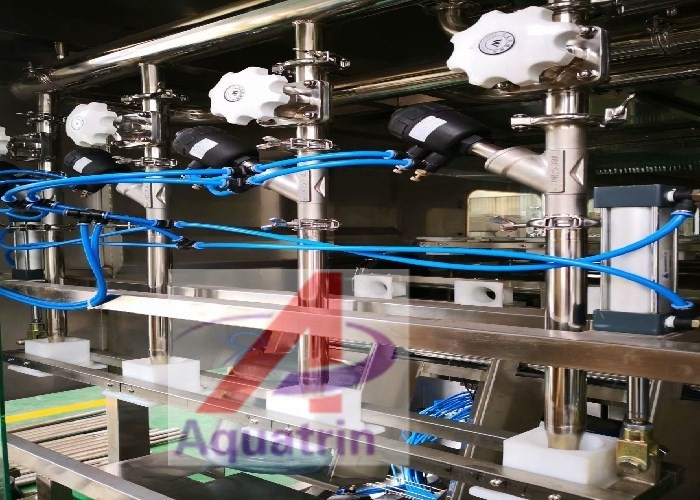

Filling part
Capping part
Shrink sleeve labeling machine
Automatic bagging machine
Model
QGF-100
QGF-300
QGF-450
QGF-600
QGF-900
QGF-1200
QGF-2000
Number of filling heads
1
2
3
4
8
12
16
Filling capacity
18.9
18.9
18.9
18.9
18.9
18.9
18.9
Barrel size (mm)
φ270×490
φ270×490
φ270×490
φ270×490

φ270×490
φ270×490
φ270×490
Production capacity (b/n)
100-120
200-240
300-400
600
900
1200
2000
Gas pressure (Mpa)
0.4-0.6
0.4-0.6
0.6
0.6
0.6
0.6
0.6
