Automatic Pet Bottle Fruit Juice Beveragen Hot Filling Machine Fresh Juice Bottling Plant With CIP Recycling System

Ask Lasest Price
Brand Name :	Aquatrin
Model Number :	RCGF
Certification :	ISO CE
Price :	USD12000-50000 1Set
Payment Terms :	L/C, T/T
Supply Ability :	10units per month
Delivery Time :	45days

Add to Cart

Product Details
Company Profile

Automatic Pet Bottle Fruit Juice Beveragen Hot Filling Machine Fresh Juice Bottling Plant With CIP Recycling System

Machine Specification

RCGF series juice filling line is used to produce PET bottled juice
within the volume from 200ml-2000ml.different models can satisfy
various requirement of output from 1500B/H to 25000B/H.this machine
incorporates ringsing,filling and capping into one kind of
full-automatic equipment.It is suitable for producing PET and
Plastic bottled juice and tea.The method of filling adopts hot
filling .The equipment is fitted with advanced Mitshbishi PLC to
control the operation and cooperated by frequency converter of the
main motor.it makes the operation more stable and reliable.the
photoelectric sensor is used to detect operating confitions of each
section,which makes the operation of this equipment highly
automatic and convenient.

Washing part

1). The rotary disk is fully made of SUS304 stainless steel.
2). Using company original tilting bottle clip, bottle clamp stuck bottleneck.
3). Using imported special efficient spray nozzle.

Automatic Pet Bottle Fruit Juice Beveragen Hot Filling Machine Fresh Juice Bottling Plant With CIP Recycling System

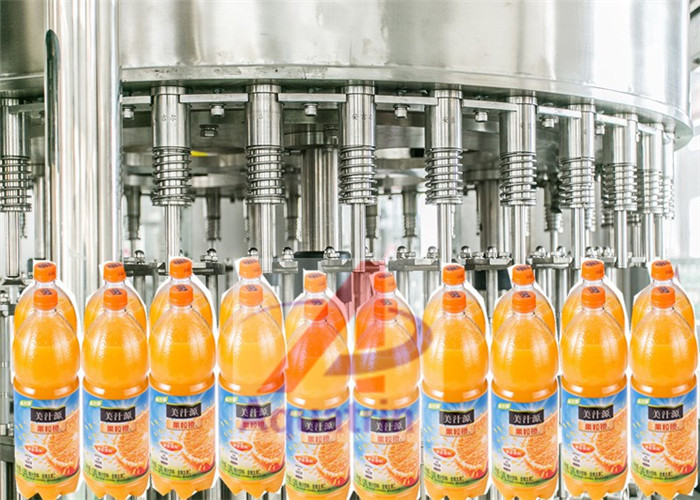

Filling part

1). The washing bottle, filling, sealing are connecting with bottleneck transportation methods.
2). The rotating disk is all made of SUS304 stainless.
3). Filling method is gravity filling.

Capping part

Automatic Pet Bottle Fruit Juice Beveragen Hot Filling Machine Fresh Juice Bottling Plant With CIP Recycling System

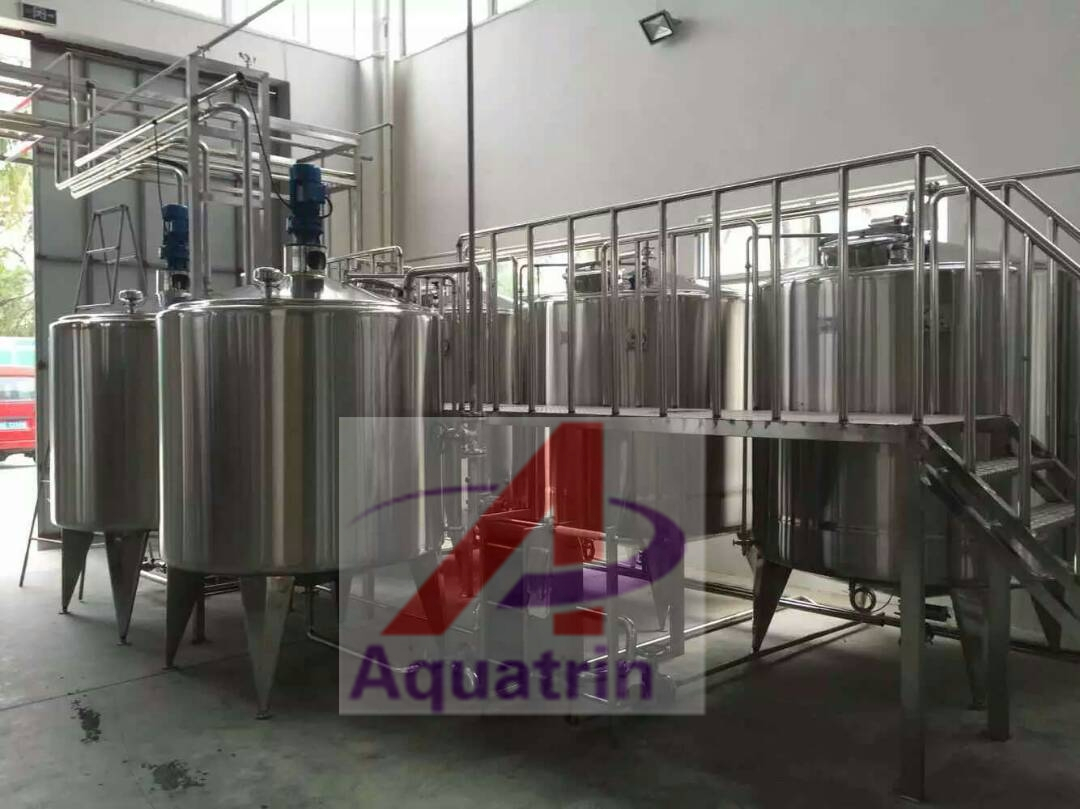

Pre-process system.

1 High-shear emulsifying tank + Plate heat exchanger 2 Mixing tank 3 UHT sterilizer + homogenizer machine + Buffer tank 4 Hot water system + Hot water tank 5 CIP cleaning system.

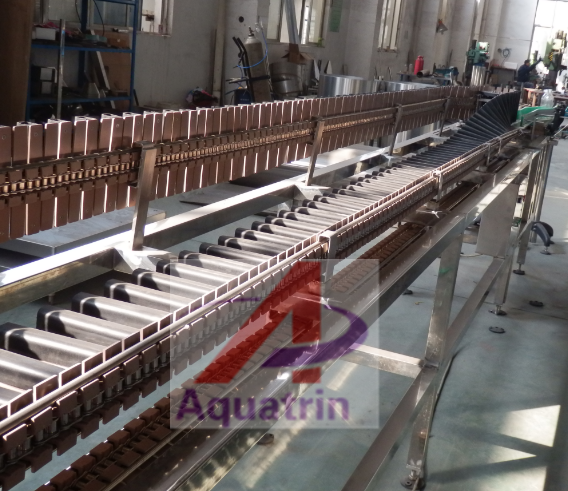

Bottle Inverter Chain

1/Use juice own high temperature to kill the bacterial inside cap. 2/Use juice own high temperature to improve sealing of bottle to extend warranty time. 3/Use SUS 304/316 stainless steel chain and high polymer material conveyor to keep high quality and increase service life.

Shower Cooling Machine.

1/Mainly for cooling and sterilization 2/The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation 3/Nozzles are manufactured using U.S. technology and spray water evenly 4/Conveyor belt adopts Rexnor technology, flat surface with small wear 5/Smooth and reliable operation with low energy consumption

We suplly Free Factory Layout design

We suplly Free Bottle Shape design

Water treatment system

Labeling Machine

Laser date printer

PE film wrapping package machine
